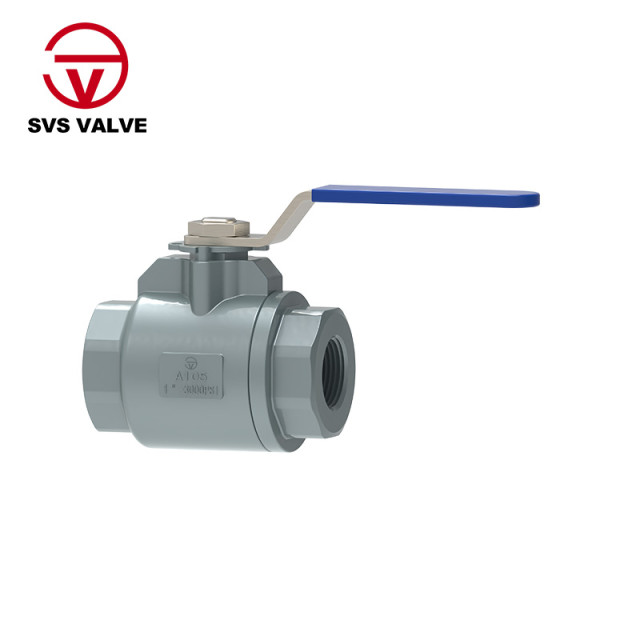

Our Two-Piece Floating Ball Valve with NPT ends is a powerful and practical solution for high-pressure fluid control. Engineered with a strengthened construction for a robust 6000 WOG rating, this valve delivers dependable performance without the high cost. The two-piece body simplifies in-line maintenance, saving you time and money. With built-in safety features like an anti-static device and a blowout-proof stem, it's a reliable choice for your toughest applications.
Key Features & Benefits
This valve is designed for a perfect balance of durability, safety, and functionality, ensuring your operations run smoothly.
- Fast and Convenient Maintenance: The two-piece design allows for quick and economical maintenance directly in the pipeline, minimizing downtime.
- High-Pressure Durability: A strengthened construction secures a 6000 WOG rating, guaranteeing the valve can withstand extreme pressure.
- Enhanced Safety: A bottom-loaded, blowout-proof stem and an anti-static device are standard features, protecting your system and personnel.
- Optimized Performance: This valve offers a simple structure with excellent tightness and low torque, ensuring smooth operation. Both full-bore and reduced-bore options are available for minimal flow resistance.
- Optional Locking Device: An optional locking device is available for added security.
Engineered for Safety and Compliance
Our valves are manufactured and tested to meet the most stringent industry standards.
- Design Standards: Designed in accordance with ANSI B 16.34 / EN 12516-1, ensuring industrial-grade performance.
- ISO 5211 Compliance: The valves are compliant with ISO 5211, making them easy to integrate with a wide range of actuators for automated control.
- Rigorous Testing: Each valve undergoes thorough inspection and testing to the current API 598 standard, ensuring reliable, leak-free performance.
Product Specifications
Product Range: 3000 WOG and 6000 WOG
Body Material: Carbon steel, stainless steel, alloy steel
Nominal Diameter: 1/4" to 3" (DN6 to DN80)
End Connection: Threaded Ends (NPT, BSPT, DIN) with ISO 5211 Mounting Pad
Pressure Range: 3000 WOG – 6000 WOG
Working Temperature: -46°C to +200°C (temperature rating varies with O-ring material)
Operation: Lever, electric actuator, etc.
