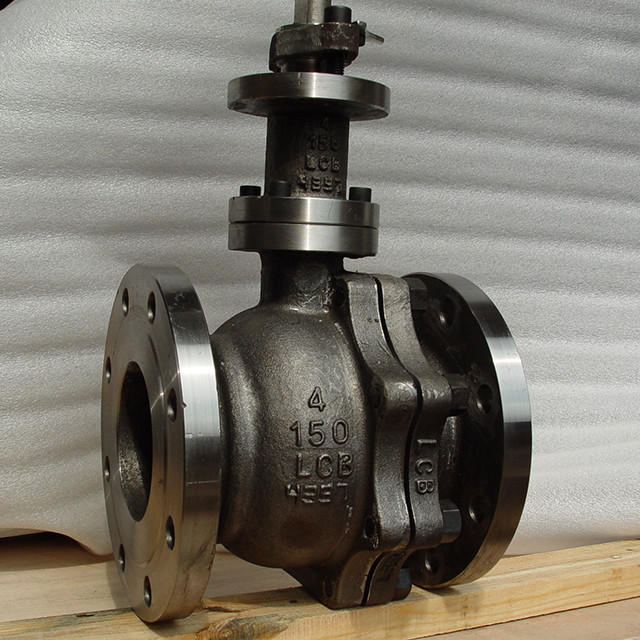

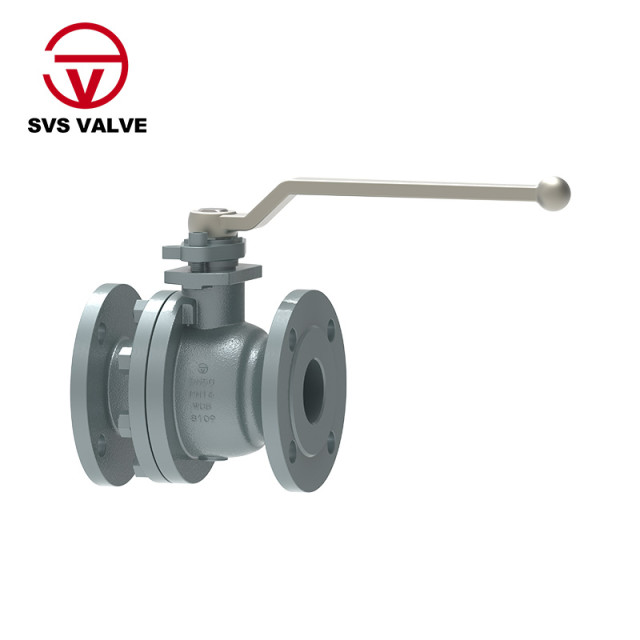

Our Cast Steel Floating Ball Valve is a versatile and dependable solution for applications needing reliable, low-torque flow control. Made from robust cast steel, it provides exceptional strength and superior corrosion resistance, making it an ideal choice for a wide range of industries, including oil and gas, chemical processing, water treatment, and power generation. This valve's design ensures smooth operation and long-lasting performance, giving you confidence in your system's integrity.
Built for Simplicity and Performance
This valve's floating ball design ensures a tight seal under pressure while offering a simple and effective structure. Under the force of the medium, the ball itself shifts to press against the outlet seat seal ring, ensuring reliable tightness.
- Effortless Maintenance: The split-body design with flanged ends allows for fast installation and convenient in-line maintenance.
- Streamlined Flow: The solid ball construction provides structural integrity and minimizes flow turbulence. Both full-bore and reduced-bore types are available, offering minimum flow resistance.
- Low Operating Torque: The body joint is specifically designed to prevent excessive compression of internal parts, resulting in consistently low operating torque.
- Enhanced Safety: Standard features include a bottom-loaded, blowout-proof stem, a fire-safe design, and an anti-static device.
Engineered to Industry Standards
Our valves are manufactured and rigorously tested to comply with the most stringent industry standards, ensuring quality and performance you can trust.
- Design Standards: Conforms to ISO 17292, API 608, BS 5351, and GB/T 12237.
- Body & Cap: Investment cast for smaller sizes (1/2" to 4") and sand cast for larger sizes (5" to 10").
- Flange & Dimensions: Flanged ends and face-to-face dimensions comply with ASME/ANSI B16.5 and ASME/ANSI B16.10, respectively.
- Testing: Each valve is tested according to ASME/ANSI B16.34 and API 598 standards.
Product Specifications
Body Material: Carbon steel, stainless steel, alloy steel
Nominal Diameter: 1/2" to 10" (DN15 to DN250)
End Connection: RF (Raised Face), BW (Butt Weld), THR (Threaded)
Pressure Range: Class 150 to 300 (PN16 to PN40)
Operation: Wrench, worm gear, electric actuator, etc.
