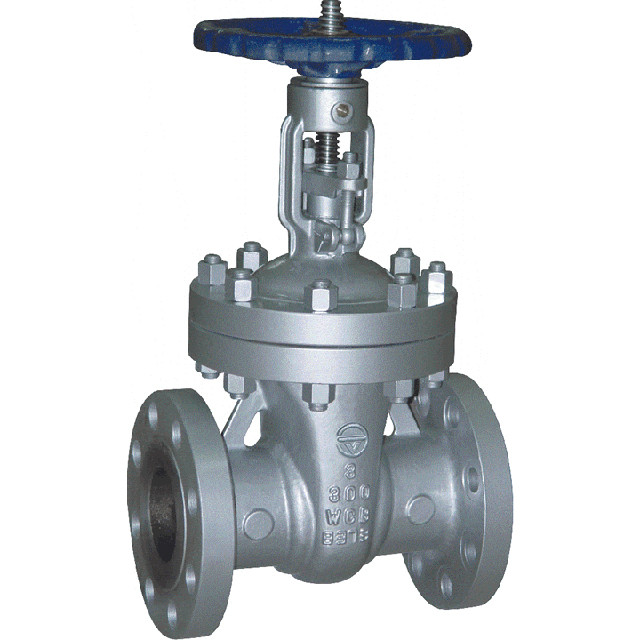

Cast Steel Gate Valve

Structural characteristics

Unlike parallel gate valves, wedge gate valves also have single wedge valves. The two sealing surfaces of the most commonly used wedge gate valve form a wedge, and the wedge angle varies with the valve parameters, usually 50. The ram of wedge gate valve can be made into a whole, which is called rigid ram; it can also be made into a ram that can produce slight deformation, so as to improve its processability and make up for the deviation of sealing surface angle in the process of processing. This kind of ram is called elastic ram.

The design and manufacture of wedge gate valve commonly used in the market are generally in accordance with GB / t12234-2007 standard, with reliable sealing and excellent performance; generally, wedge type elastic gate structure is adopted, and rolling bearing is set in medium and large diameter, so it is easy to open and close; wedge gate valve has simple shape, short structure length, good manufacturing process and wide application range. Received the welcome of the majority of users.

Working principle

The opening and closing parts of wedge gate valve are gate. The movement direction of gate valve is perpendicular to the fluid direction. Wedge gate valve can only be fully opened and fully closed, which is not suitable for adjustment and throttling. Wedge gate valve generally through the stem with the rotating handwheel up and down to complete the opening and closing of the valve. There are two kinds of gate valves: the rising stem wedge gate valve and the hidden stem wedge gate valve. The rising stem wedge gate valve moves up and down the stem, and the stem nut is fixed. The concealed stem gate valve is fixed with the stem, and the up and down movement of the stem nut has completed the opening and closing.
