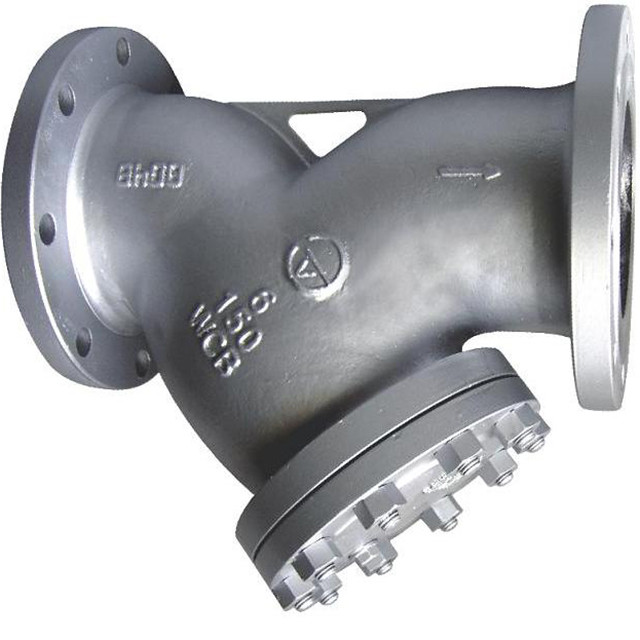

Cast Steel Strainer

Cast steel filter is an indispensable device on the transmission medium pipeline, which is usually installed at the inlet end of pressure reducing valve, pressure relief valve, constant water level valve or other equipment to eliminate impurities in the medium and protect the normal use of the valve and equipment. When the fluid enters the filter cartridge with a certain size of filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it needs to be cleaned, as long as the removable filter cartridge is taken out, it can be re installed after treatment, so it is very convenient for use and maintenance.

Equipment classification: editing

According to the filter medium, it is divided into:

1. Air filter

Make the polluted air clean to the state needed by production and life, that is to say, make the air clean to a certain degree.

2. Liquid filter

Make the polluted liquid clean to the state needed by production and life, that is to say, make the liquid reach a certain cleanliness.

3. Network filter

Set up to block junk information and make the information on the computer screen meet the requirements as much as possible. Separate different colors of light according to the principle of absorption

4. Light filter

Absorb some unnecessary light.

According to the installation method, it can be divided into:

Suction filter

Return oil filter

Line filter

According to performance:

Line filter

Double cartridge filter

High pressure filter

In fact, there are many kinds of filters, such as laminated filter, sand filter, carbon filter, etc. the main principle is to use the pore diameter of the filter medium to intercept substances with smaller pore diameter than that of the medium. Of course, some filter media also have adsorption and other special effects. Most filter backwashing is not so troublesome, as long as water from the end of the filtered water into the reverse backwashing filter medium can achieve good backwashing effect.

Bench filter: Edit

It is used on the filter performance test-bed. Before the test, the test-bed should strictly purify the system. Therefore, the test system and the pollution injection system serving the test system need to be equipped with filters. In this case, the filter and the filter to be tested are two different things. Its accuracy needs to be met, and the requirements for the pollutant capacity are higher than the filter to be tested, so as to distinguish the same test system The two types of filters in are called test bench filter and tested filter.

Selection principle: Edit

1. Inlet and outlet diameter:

In principle, the inlet and outlet diameter of the filter shall not be less than the inlet diameter of the matched pump, generally consistent with the inlet pipe diameter.

2. Nominal pressure:

Determine the pressure level of the filter according to the highest possible pressure in the filter line.

3. Selection of hole number:

The impurity particle size to be intercepted is mainly considered, which is determined according to the technological requirements of medium process. Refer to the following table "screen specifications" for the interceptable particle size of various specifications of screen.

4. Filter material:

The material of the filter is generally the same as that of the connected process pipe. For different service conditions, the filter made of cast iron, carbon steel, low alloy steel or stainless steel can be selected.

5. Calculation of filter resistance loss

For water filter, the pressure loss is 0.52-1.2kpa under the general calculation of rated flow rate
